CASE STUDY THREE: ENVIROMENTAL AESTHEIC FACE LIFT | |
Project
type:

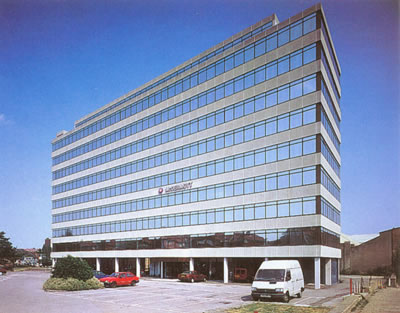

Office Block Refurbishment, Wembley
|
Film
type: Reflective Solar
Control Film |
Heat
and glare can cause considerable discomfort to staff in the working
environment. This can be a problem not just during the summer months
but on winter and spring days too when the sun is low on the horizon.
This was the key factor in the decision to renovate the existing windows
and upgrade them with a solar control film as part of a refurbishment
programme at this Wembley office block. |
|
Alternative options such as window replacement or the installation of secondary glazing were investigated but not considered cost effective or practical for this building. Therefore a series of product comparisons tests was carried out on a selection of grades of solar control film to determine which was best suited to meet the building’s needs. Madico Refelecto-shield silver reflective film was finally chosen for all external elevations because it offers high levels of glare ands heat reductions. Made from laminated polyester film with a metallised aluminium-coated finish, it achieves excellent glare reductions and heat rejection through a combination of reflecting and absorbing the sun’s rays. |
|
The
film has increased the comfort levels inside the building and, through
its ability to reduce the amount of solar heat entering the building,
has enabled the air-conditioning units to function more efficiently.It
has also reduced heat loss from the inside during winter, making the
building more energy efficient. |
The
silver reflective film used at Wembley has transformed the appearance
of the building, making a more significant visual contribution to the
refurbishment programme. The reflective finish effectively conceals
from view the perimeter columns directly behind the windows, giving
the elevations a more streamlined look. |
